NUMBER | MODEL | SIZE |
1 | VCRSO-252015 | 250*200*150 |
2 | VCRSO-302015 | 300*200*150 |
3 | VCRSO-302520 | 300*250*200 |
4 | VCRSO-403020 | 400*300*200 |
5 | VCRSO-503020 | 500*300*200 |
6 | VCRSO-504020 | 500*400*200 |
7 | VCRSO-604020 | 600*400*200 |
8 | VCRSO-806020 | 800*600*200 |
9 | VCRSO-806030 | 800*600*300 |
10 | VCRSO-1006030 | 1000*600*300 |
11 | VCRSO-1008030 | 1000*800*300 |
12 | VCRSO-12010030 | 1200*1000*300 |
13 | VCRSO-12010040 | 1200*1000*400 |
Features of products
1.PU foaming sealing strip ensures a protection grade of lP66 to box body.
2.Bosses of various types and sizes allow easy installation of inlet/outlet lines.
3.Galvanized mounting plate can also be used for wiring outside the box
4.Multiple protection grooves are designed at the box opening can not only reinforce the structure but also prevent the entry of dirt or water when the door is opened
5.Professional lock system with double-teeth cylinder allows easy locking/unlocking
Material | SUS304 (other material typesare option) |
Thickness | 0.8/1.0/1.2/1.5/2mm |

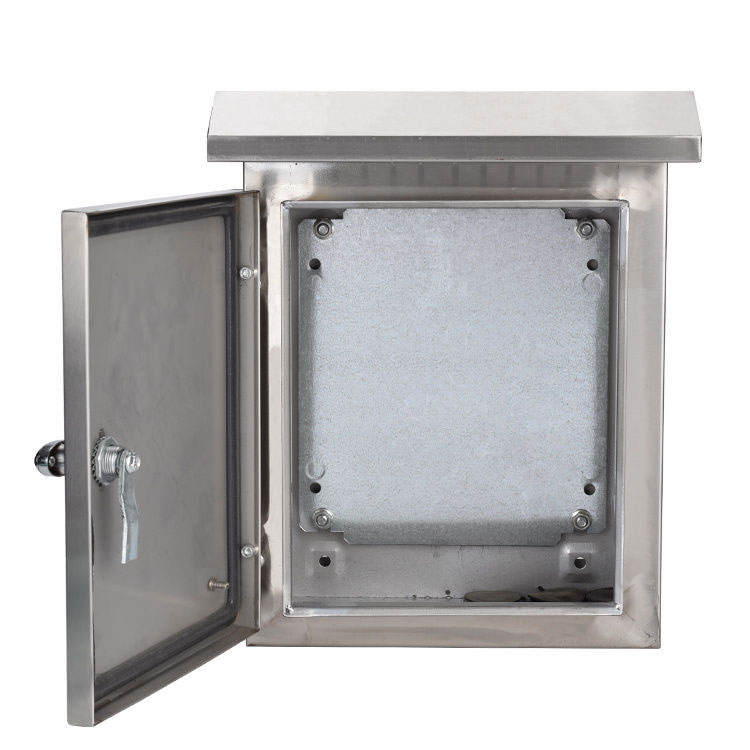

Mounting plate | Galvanized sheet orPainted floor |
Protection degree | IP 54/IP 65 |
Surface Treatment | Wire drawing |
Processing | Laser cutting, CNC punching, CNC bending, Stamping, Welding,Polishing, etc |
Finishing | Powder coating, Oxidization, Electrophoresis, Galvanization, etc |
Customization | OEM / ODM / Dimensions / Thickness / Color / Appearance / Mounting type |
Standard configuration | Door plate, box body, sealing strip, grounding set,mounting plate, door lock |
